Different Ultrasonic Cutting Machines for Small and Medium Sized Industrial Complexes

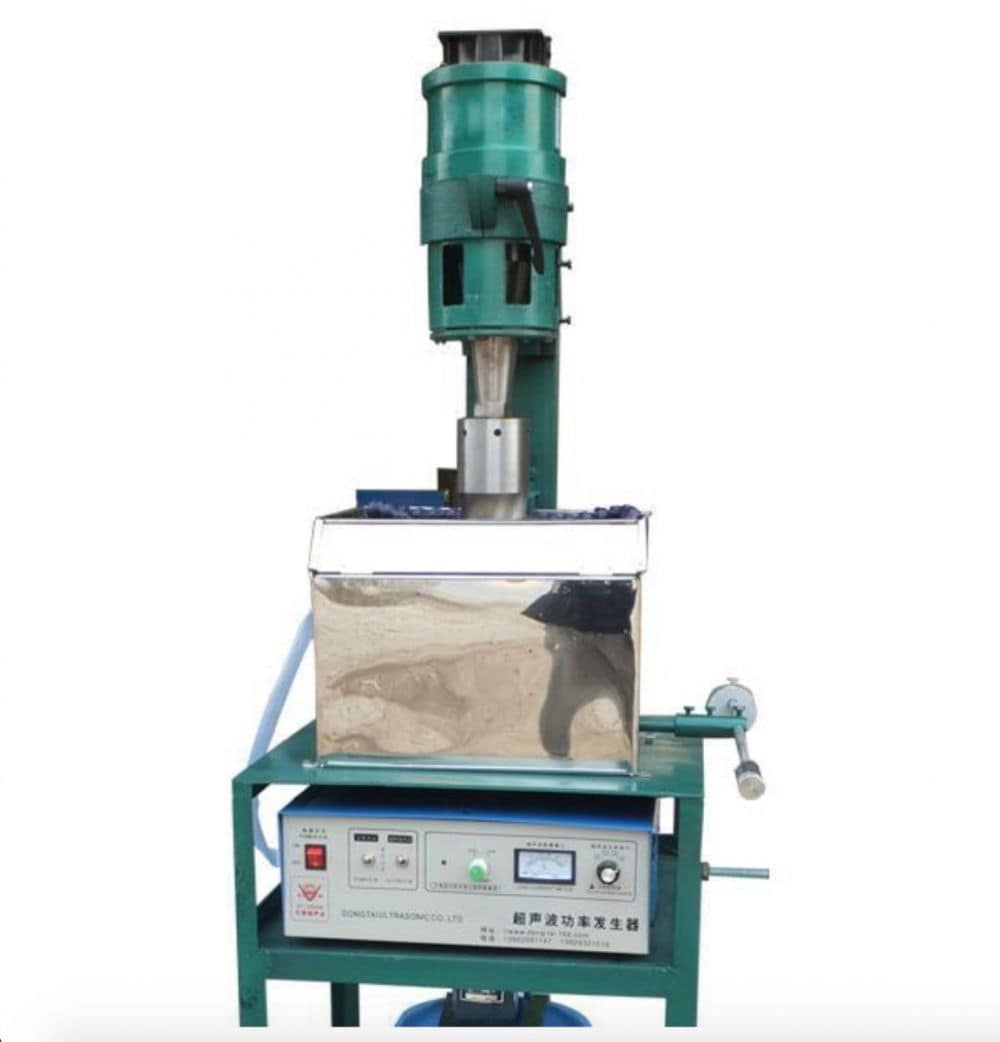

This Ultrasonic Carving machine carves different shapes and figures on a gemstone. For carving processing, it needs a steel mould. Then, it can cut the stone according to the form of the steel mould. It will take about 30mins to finish one carving product. The thickness range is from 1cm to 10cm. This Ultrasonic Carving Machine is suitable for most semi-precious and precious gemstones. The Ultrasonic carving machine needs a mix of water and silicon carbide as a grinding medium.

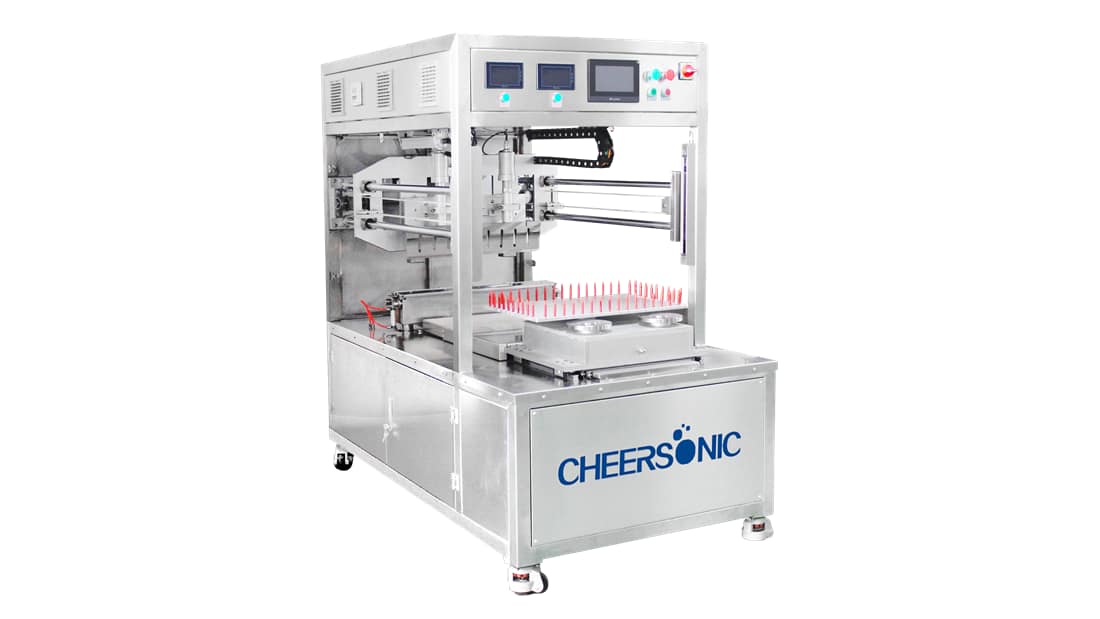

The Compact Ultrasonic cutter is designed to cut round and rectangular. It has a small footprint. The machine is designed to work fast and accurate. The operator controls the speed, shape cutting and ultrasonic energy through a touch screen and is easy to use. The machine is built according to the highest standards of health.
• Cuts round and rectangular
• Easy to use software
• Up to 50 programs cut
• Respect for the highest standards of health and safety
• Energy efficiency
• Compact size
• Optional washing station

KEY FEATURES

• Voltage ：AC 220V
• Power ：1500w/2400w/3200w
• Frequency ：15KHz—20KHz
• Dimension ：540mm×500mm×1500mm
• 5 pcs steel molds supplied with the machine

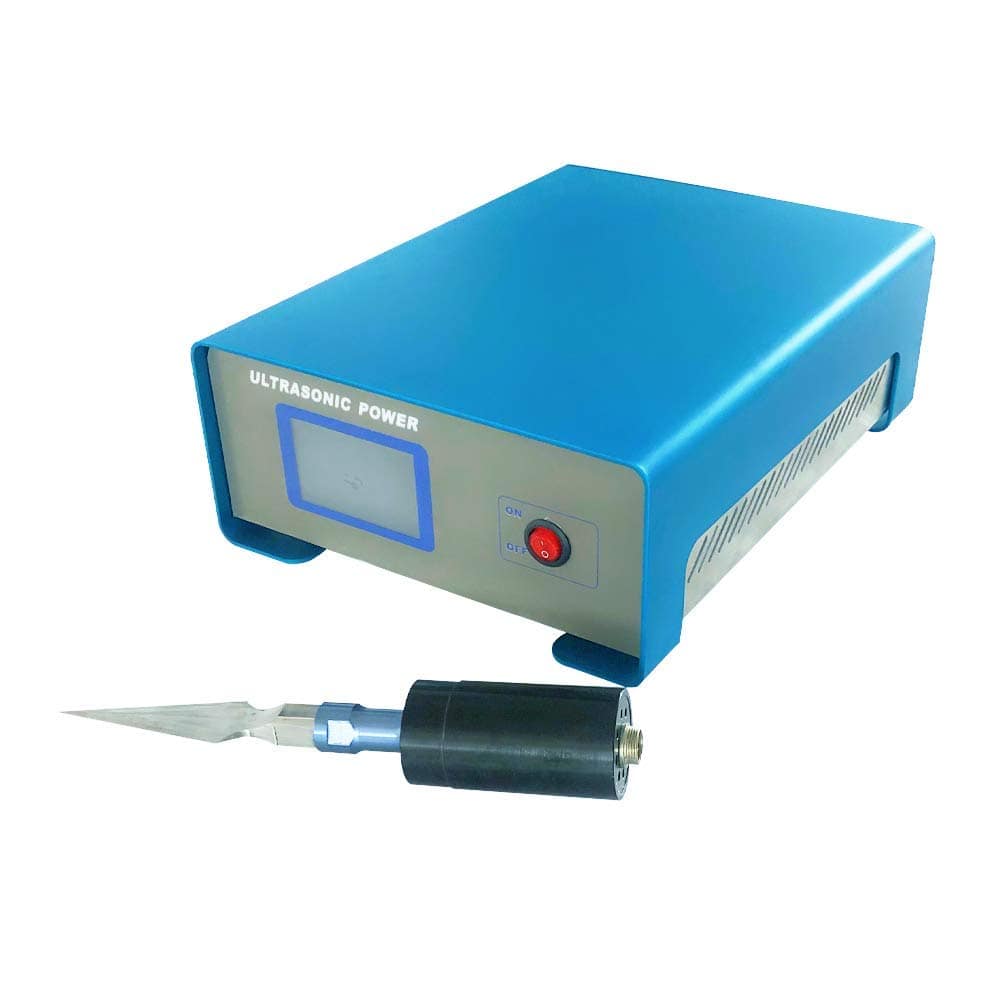

Ultrasonic Cutting Knife

• [Extensive Application]–The ultrasonic cutter can cut many materials such as ABS, PE, PVC, PC, acrylic, non-woven, neoprene, corrugated, plywood, fibreglass resin, cardboard, linen (linoleum), urethane, nylon, PP, etc.
• [Abundant Functions]–Automatic resonance point, automatic frequency sweep tracking in the frequency range of 19-26KHZ. Automatic amplitude compensation automatically works at the optimal frequency point and output point according to the fluidity of the sample. Independent on/off pulse with three modes of continuous use, vibration and timed serial ultrasound.
• [Working Principle]–The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut by the cutter. Under the action of substantial ultrasonic energy, this part softens and melts instantly, and the strength is significantly reduced. The material to be cut does not stick to the blade and does not collapse or break. It has a noticeable effect on cutting frozen, viscous and elastic materials.
• [Attention]–To better understand your needs, please tell us the type and thickness of the material to be cut. What shape or shape is needed after cutting?

Technical Parameter

• Power supply: 85～240V/50-60Hz
• Power output: 500W
• Nominal frequency: 24KHz, real-time display (19-26KHz sweep frequency automatic tracking)
• Timer: 1min ~ 99h settable
• Power adjustment: 1% -100%, 1% progressive
• Temperature setting: 0-300°C/32-572℉, 1°C progressive
• User program: 10 groups (Settable, Storable, Real-time View of Work Status)
• Pulser: closed/open cycle, 1s ~ 60min settable
• Operating mode: Pulse, Time, Continuous
• LCD screen: color touch screen; resolution: 400 × 240
